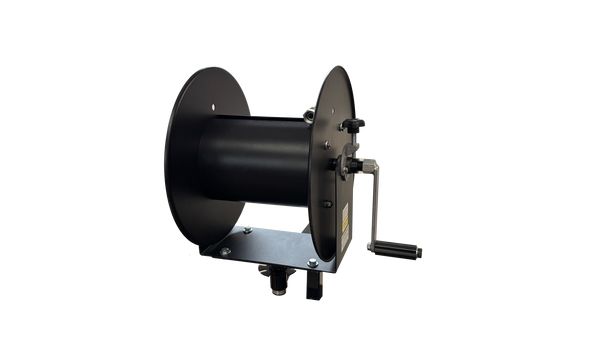

SBM Series Mini with Swivel Base

For 1/4", 3/8” and 1/2" Manual Driven Hose Reels

SBM Series Mini with Swivel Base is a compact manual driven mini-reel for where space or weight is a critical factor. This product is ideally fitted into tight space applications for pressure wash or deployment of air tools in the construction trades.

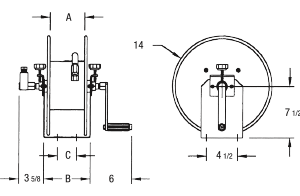

Series	Dimensions
	A	B	C
SB 10	10	12	7 3/4

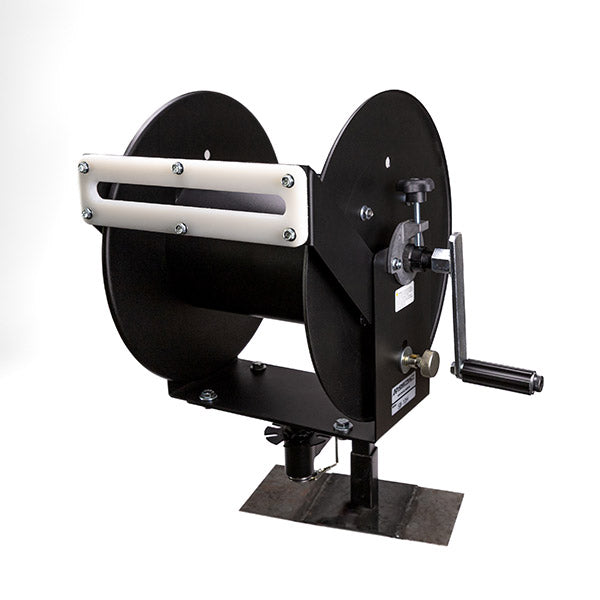

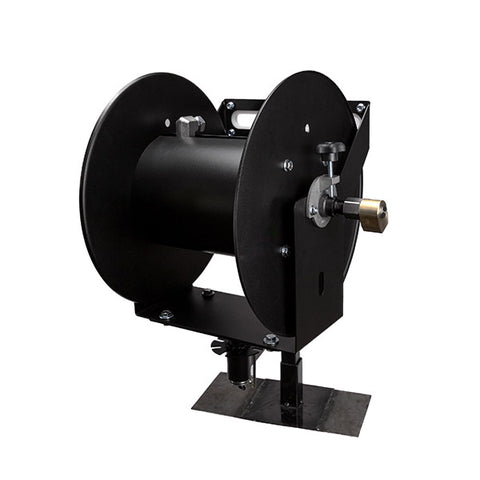

Reels show with Hot Pressure Hose Mount.

Features:

Heavy duty ABS bearings require no lubrication for years of dependable service.
External swivel can be serviced without taking down the reel.
Steel construction with powder coated finish
Adjustable tension know and spool locking pin for easy handling
Directional lock positions standard on base

Mounting base selections(Add suffix):

PW Hot Pressure Wash Mount (shown on reel assembly)
WM Wall Mount
BM Bench Mount

Download PDF

Models without hose and hose stop

MODEL #	WEIGHT	PSI	HOSE CAPACITY 3/8''	HOSE CAPACITY 1/2''	REEL INLET	REEL OUTLET
SB10H-PW	38	4000	150’	100'	1/2" NPT (F)	1/2" NPT (F)
SB10H-BM	38	4000	150’	100'	1/2" NPT (F)	1/2" NPT (F)
SB10H-WM	38	4000	150’	100'	1/2" NPT (F)	1/2" NPT (F)
SB15H-PW*	(-)	4000	225’	150'	1/2" NPT (F)	1/2" NPT (F)
SB15H-BM*	(-)	4000	225’	150'	1/2" NPT (F)	1/2" NPT (F)
SB15H-WM*	(-)	4000	225’	150'	1/2" NPT (F)	1/2" NPT (F)

Add - SSV to receive SS Swivel

Standard with pressure wash mount; optional wall mount and bench mount are available.

Warranty

Warranty info found here.
