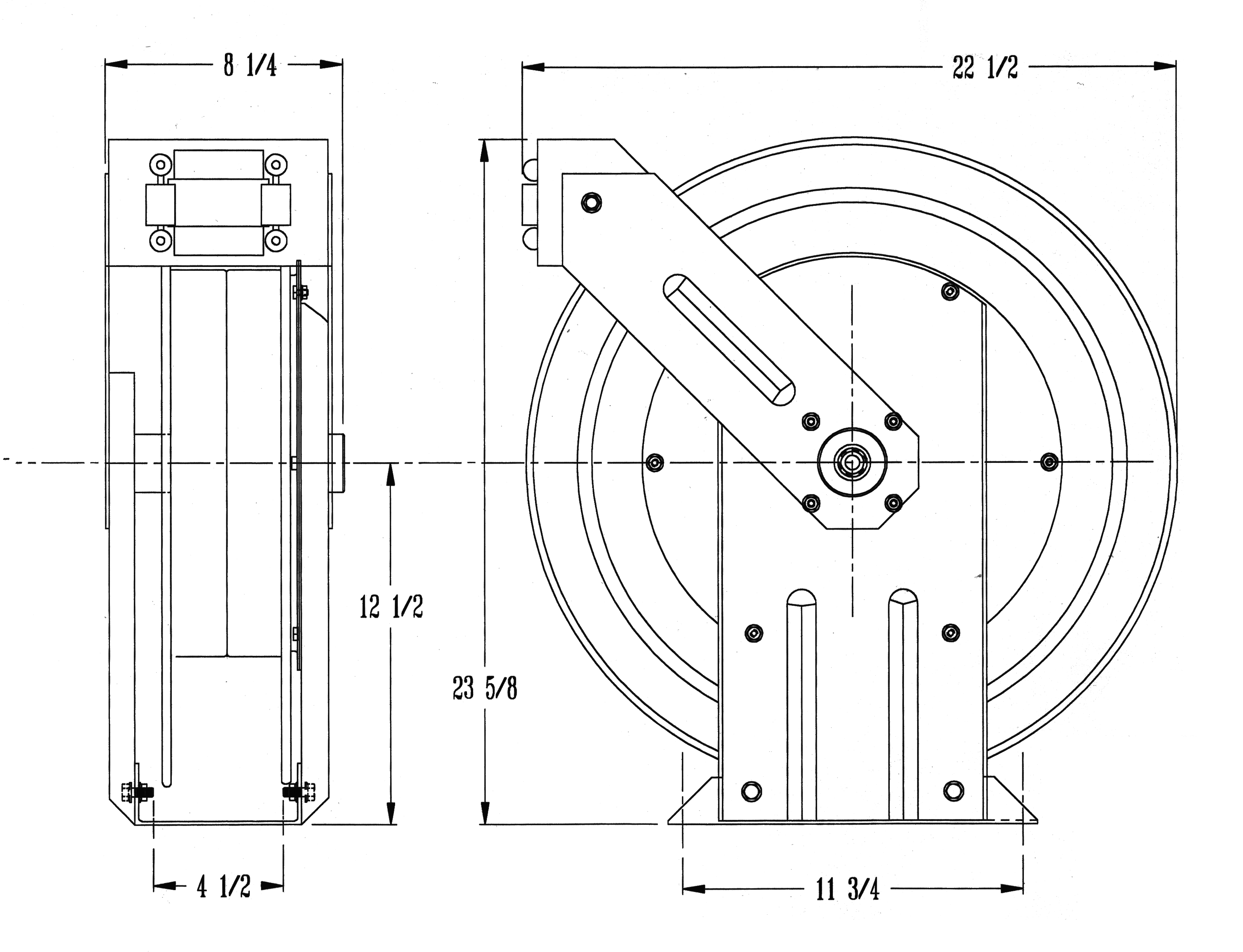

G-Series Low/Medium/High Pressure
For 3/8” and 1/2" Hose I.D.
G-Series is a heavy duty, double arm hose reel designed for durability. The reel is compact for space constraints and can hold up to 100 feet of ½” hose. This reel is designed with the ball bearings for smooth retraction, spring cassette for easy changeover and safety, and rounded flange edge for strength creating a robust reel for all applications.
Swivel
Standard: Carbon Steel zinc coated
Optional: Stainless Steel and Nickel Coated Steel
Features
- Sealed roller bearings
- Reel arms can be adjusted to mount the reel on the ceiling, wall or truck.
- One piece steel wet path for durability and unconstructed flow.
- 4 mounting slots in 11 gauge steel for easy and sturdy hose reel mounting.
- Double arm for added strength when unwinding the reel.
- Hidden latch mechanism to prevent grime buildup.
- Smooth ratchet and pawl design for easy unwinding and rewinding
- Safety banded spring in sealed springcase
- Non sparking latch mechanism
MODELS WITHOUT HOSE AND HOSE STOP
| MODEL # | WEIGHT | PSI | HOSE CAPACITY ID | HOSE CAPACITY FT | REEL INLET | REEL OUTLET |
|---|---|---|---|---|---|---|
| LG-300 | 75 | 1000 | 3/8" | 50' | 1/2" NPT (F) | 1/2" NPT (F) |
| LG-500 | 75 | 1000 | 1/2" | 50' | 1/2" NPT (F) | 1/2" NPT (F) |
| MG-300 | 75 | 4000 | 3/8" | 50' | 1/2" NPT (F) | 1/2" NPT (F) |
| MG-500 | 75 | 4000 | 1/2" | 50' | 1/2" NPT (F) | 1/2" NPT (F) |
| HG-200 | 75 | 5000 | 1/4" | 50' | 1/4" NPT (F) | 1/4" NPT (F) |
| HG-300 | 75 | 5000 | 3/8" | 50' | 1/4" NPT (F) | 3/8" NPT (F) |
MODELS WITH HOSE AND HOSE STOP
| MODEL # | WEIGHT | PSI | HOSE ID | HOSE LENGTH FT | REEL INLET | REEL OUTLET |
|---|---|---|---|---|---|---|
| Air/Water/AF/WW | Low Pressure | |||||
| LG-375 | 88 | 300 | 3/8" | 75' | 1/2" NPT (F) | 1/4" NPT (M) |
| LG-3100 | 92 | 300 | 3/8" | 100' | 1/2" NPT (F) | 1/4" NPT (M) |
| LG-550 | 88 | 300 | 1/2" | 50' | 1/2" NPT (F) | 1/2" NPT (M) |
| LG-575 | 93 | 300 | 1/2" | 75' | 1/2" NPT (F) | 1/2" NPT (M) |
| LG-5100 | 98 | 300 | 1/2" | 100' | 1/2" NPT (F) | 1/2" NPT (M) |
| Lubricants | Medium Pressure | |||||
| MG-375 | 95 | 3000 | 3/8" | 75' | 1/2" NPT (F) | 1/4" NPT (M) |
| MG-550 | 91 | 2750 | 1/2" | 50' | 1/2" NPT (F) | 1/2" NPT (M) |
| MG-575 | 98 | 2750 | 1/2" | 75' | 1/2" NPT (F) | 1/2" NPT (M) |
| Grease | High Pressure | |||||
| HG-2100 | 96 | 5000 | 1/4" | 100' | 1/4" NPT (F) | 1/4" NPT (M) |
| HG-350 | 92 | 5000 | 3/8" | 50' | 1/4" NPT (F) | 3/8" NPT (M) |
| HG-375 | 99 | 5000 | 3/8" | 75' | 1/4" NPT (F) | 3/8" NPT (M) |
Warranty
