B Series

B-Series Low/Medium/High Pressure

For 1/4”, 3/8" and 1/2” Hose I.D.

B-Series all steel hose reels are designed for industrial applications where heavy usage also needs a small footprint to accommodate. Built on a smaller scale with the same components as our workhorse C series reels, this reel’s compact design fits easily into restricted space areas. Heavy gauge base with no welds or bolts, this product will give years of dependable service in high use applications. With a carbon steel outlet swivel and fluid shaft, the reels are available for use in low pressure (300psi), medium pressure (2,000psi) and high pressure (5000psi) applications for air, water, oil, and grease. This product is ideal where hose storage and operating efficiency are needed. Full flow ½” shaft allows maximum delivery to the application point. Four position guide arm allows easy adjustment to the position best suited.

Swivel:

Standard: Carbon Steel zinc coated

Features:

  • Powder Coat finish
  • Mounting Slots - 3/8” wide x 3/4” deep for max 5/16” dia. bolt
  • Safety banded spring sealed springcase
  • Full 1/2" flow path (Low and Medium pressure models)
  • Compact design
  • Reels shipped standard front hose payout position.
  • Nonsparking latch mechanism

MODELS WITHOUT HOSE AND HOSE STOP

MODEL # WEIGHT PSI HOSE CAPACITY ID HOSE CAPACITY FT REEL INLET REEL OUTLET
LB-200 25 1000 1/4" 40' 1/2" NPT (F)
3/8" NPT (F)
LB-300 25 1000 3/8" 35' 1/2" NPT (F)
1/2" NPT (F)
LB-500 25 1000 1/2" 25' 1/2" NPT (F) 1/2" NPT (F)
MB-300 22 2000 3/8" 35' 1/2" NPT (F) 1/2" NPT (F)
MB-500 23 2000 1/2" 25' 1/2" NPT (F) 1/2" NPT (F)
HB-200 25 5000 1/4" 35' 1/4" NPT (F) 1/4" NPT (F)
HB-300 25 4000 3/8" 25' 1/4" NPT (F)
3/8" NPT (F)

MODELS WITH HOSE AND HOSE STOP

MODEL # WEIGHT PSI HOSE ID HOSE LENGTH FT REEL INLET HOSE END FITTING
LB-250 29 300 1/4" 50' 1/4" NPTM
1/4” NPT (M) *

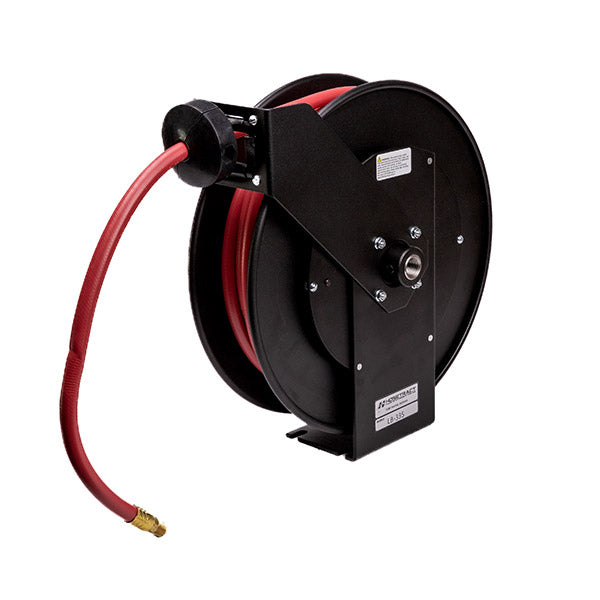

LB-335 32 300 3/8" 35' 3/8" NPTM
1/4” NPT (M) *
LB-525 32 300 1/2" 25' 1/2" NPTM
1/2” NPT (M) *
MB-335 31 2000 3/8" 35' 3/8" NPTM
3/8” NPT (M) *
MB-525 31 2000 1/2" 25' 1/2" NPTM
1/2” NPT (M) *
HB-235 33 5000 1/4" 35' 1/4" NPTM
1/4” NPT (M) *
HB-325 34 4000 3/8" 25' 3/8" NPTM
3/8” NPT (M) *

*Can be furnished with different sizes upon request.
