M Series (3/8)

M Series (3/8)

For 3/8” and 1/2” Hose I.D.

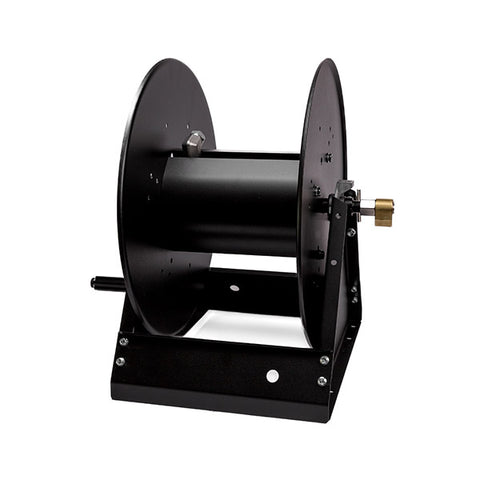

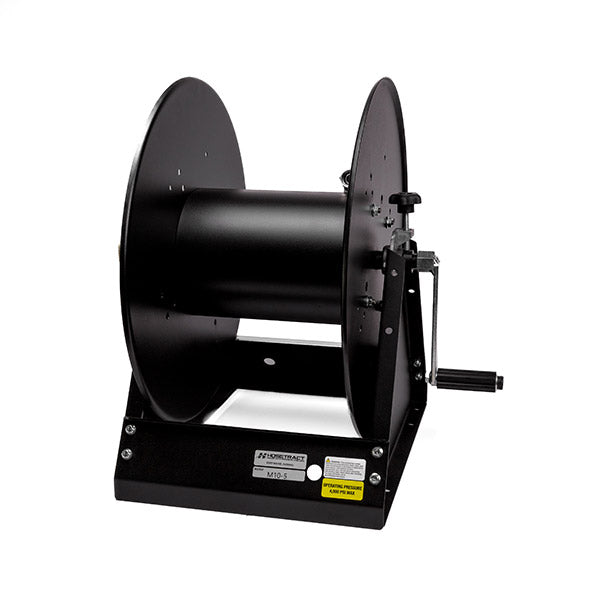

M-Series are manual driven hose reels where long lengths of hose are required, as in Agriculture, Power Wash, Pest Control and Construction trades. Hose can be dispensed and retracted with greater ease and expedience than coiling by hand. Designed for heavy duty applications.

All reels shipped less hose unless requested on quote basis.

Mounting holes 1/2" diameter.

 Series Dimensions
A B C
M 5-5 5 7 3/4 8 3/4
M 10-5 10 12 3/4 13 3/4
M 15-5 15 18 1/2 19 1/2
M 20-5 20 23 1/2 24 1/2
M 25-5 25 28 1/2 29 1/2



Features:

  • The rewinding handle and the swivel's positions are interchangeable
  • External swivel can be serviced without taking down the reel
  • Bolted construction
  • Adjustable tension knob and spool locking pin for easy handling
  • Mounting base is light and strong
  • Steel construction with powder coated finish
  • Heavy duty ABS bearings require no lubrication for years of dependable service.
  • Also available in stainless steel (MS-series)

Standard Accessories:

  • Outlet swivel elbow
  • Reducer bushing
  • Inlet swivel
  • Crank handle
Download PDF

MODELS WITHOUT HOSE AND HOSE STOP

MODEL # WEIGHT PSI HOSE CAPACITY 3/8'' HOSE CAPACITY 1/2' REEL INLET REEL OUTLET
M 5-5 30 4000 100’ 75' 1/2" NPT (F) 1/2" NPT (F)
M 10-5 39 4000 250’ 175' 1/2" NPT (F) 1/2" NPT (F)
M 15-5 51 4000 350’ 350' 1/2" NPT (F) 1/2" NPT (F)
M 20-5 62 4000 450’ 450' 1/2" NPT (F) 1/2" NPT (F)
M 25-5 74 4000 550’ 550' 1/2" NPT (F) 1/2" NPT (F)
M 5-5-SS 30 4000 100’ 75' 1/2" NPT (F) 1/2" NPT (F)
M 10-5-SS 39 4000 250 175' 1/2" NPT (F) 1/2" NPT (F)
M 15-5-SS 51 4000 350’ 275' 1/2" NPT (F) 1/2" NPT (F)
M 20-5-SS 62 4000 450' 375' 1/2" NPT (F) 1/2" NPT (F)
M 25-5-SS 74 4000 550’ 475' 1/2" NPT (F) 1/2" NPT (F)
*-SS : High pressure stainless steel liquid path

Warranty

Warranty info found here.
