DS-Series Low Pressure
For 3/4" and 1" Hose I.D.

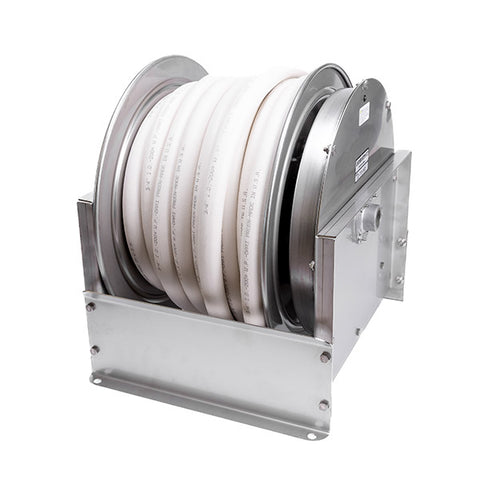

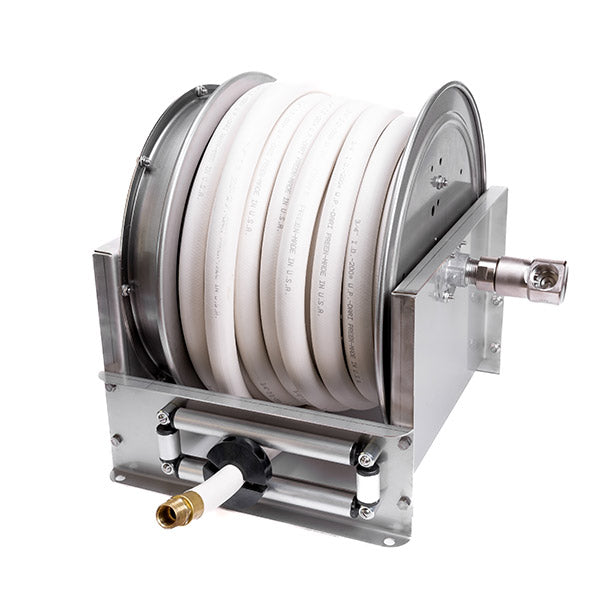

DS-Series 304 Stainless Steel Reels should be utilized in harsh environments, such as chemical clean up or when an exceptionally clean area has to be maintained for food or beverage process. Heavy gauge base with no welds or bolts, this product will give years of dependable service in high use applications.
Reels available only in standard front hose payout position.
Mounting holes 1/2" dia. for max 3/8" dia. bolt
| 3/4 & 1 | |
| A | 20 7/8 * |
| B | 10 |
| C | 14 |
| D | 15 5/8 |
*with swivel installed
Swivel
All Stainless DS Series are shipped standard with a stainless steel fluid path and nickel swivel
Hose Options Available
-
Air/Water application hose
-
White washdown hose
-
Chemical application hose
Features
- Safety banded spring in sealed springcase
- Nonsparking latch mechanism
- Full 1" flow path
- Heavy duty spool and frame design
MODELS WITHOUT HOSE AND HOSE STOP
| MODEL # | WEIGHT | PSI | HOSE CAPACITY ID | HOSE CAPACITY FT | REEL INLET | REEL OUTLET |
|---|---|---|---|---|---|---|
| LDS-700 | 73 | 1000 | 3/4" | 50'/70' ** | 1" NPT (F) | 3/4" NPT (F) |
| LDS-1000 | 86 | 1000 | 1" | 45' | 1" NPT (F) | 1" NPT (F) |
MODELS WITH HOSE AND HOSE STOP
| MODEL # | WEIGHT | PSI | HOSE CAPACITY ID | HOSE CAPACITY FT | REEL INLET | HOSE END FITTING |
|---|---|---|---|---|---|---|
| LDS-750-WD | 96 | 300 | 3/4" | 50' | 1" NPT (F) | 3/4" NPT (M)* |
| LDS-770-WD | 104 | 300 | 3/4" | 70' | 1" NPT (F) | 3/4" NPT (M)* |
| LDS-1025-WD | 100 | 300 | 1" | 25' | 1" NPT (F) | 1" NPT (M)* |
| LDS-1045-WD | 109 | 300 | 1" | 45' | 1" NPT (F) | 1" NPT (M)* |
| LDS-750-NY | 96 | 300 | 3/4" | 50' | 1" NPT (F) | 3/4" NPT (M)* |
| LDS-770-NY | 104 | 300 | 3/4" | 70' | 1" NPT (F) | 3/4" NPT (M)* |
| LDS-1025-NY | 100 | 300 | 1" | 25' | 1" NPT (F) | 1" NPT (M)* |
| LDS-1045-NY | 109 | 300 | 1" | 45' | 1" NPT (F) | 1" NPT (M)* |
| WD is white wash down with brass fittings and ferrules |
| NY is chemical hose with brass fittings and ferrules |
| D series stainless steel liquid path is available in SSB models; includes stainless steel shaft and swivel with BUNA; 250degrees F 1000 PSI |
| DS shaft is stainless, standard swivel is nickel; add SSB to replace nickel swivel with stainless swivel with BUNA; 250 degrees F 1000 PSI |
| Fuel Reels must be static grounded by mounting method |
* Can be furnished with different sizes upon request.
** Please specify the maximum hose length to be used.
For 3/4" and 1" models, swivel is included in the package.
